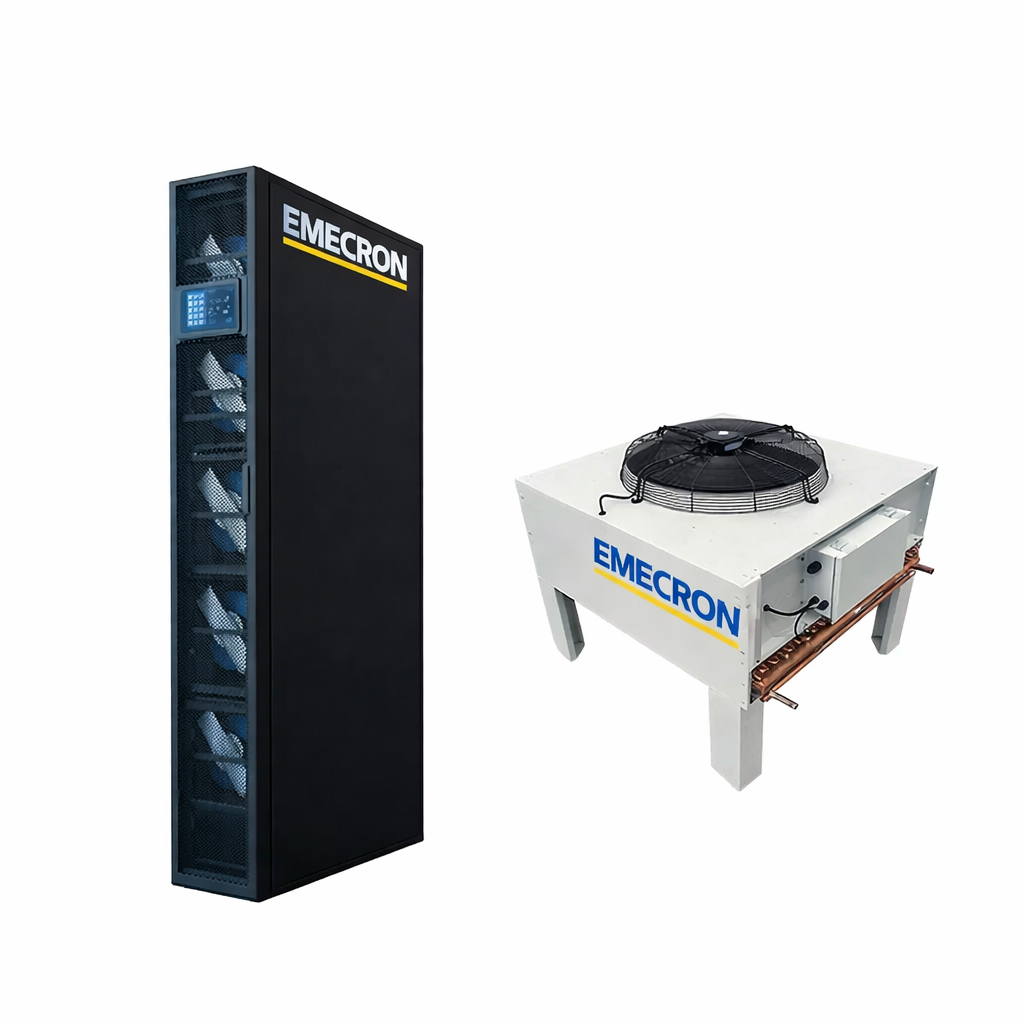

Emecron In-Row Precision Cooling System

Close-Coupled Cooling for High-Density Data Centers

The Emecron In-Row Precision Cooling System is engineered for high-density data center environments, delivering targeted cooling directly between server racks for maximum efficiency and performance.

By positioning the cooling unit within the server row, the system minimizes airflow distance, improves thermal management, and ensures precise cooling exactly where heat is generated—making it ideal for modern, high-load IT infrastructure.

Product Overview

Emecron in-row cooling systems are designed for next-generation data centers, micro-modules, and edge computing environments, where traditional room cooling is no longer sufficient.

Installed directly between racks, the system:

• Reduces hot air recirculation

• Increases return air temperature

• Enhances cooling efficiency

• Provides dynamic load-based cooling

This close-coupled design significantly improves overall data center performance and energy efficiency.

Key Features

Close-Coupled Cooling Architecture

Installed within the rack row, the unit cools directly at the heat source, reducing airflow losses and improving system efficiency.

Variable Capacity Control (20%–100%)

Flexible cooling capacity modulation ensures the system adapts to real-time heat loads, improving energy efficiency and reducing operational costs.

Inverter Scroll Compressor

High-efficiency inverter-driven compressor provides precise cooling control, improved reliability, and reduced energy consumption.

EC Fan Technology

Advanced EC fans enable stepless airflow control, ensuring optimal air distribution and energy-efficient operation.

High Sensible Heat Ratio (SHR)

Optimized for IT environments with high sensible heat loads, ensuring efficient removal of server-generated heat.

Intelligent Control System

• 7-inch touchscreen interface

• Real-time monitoring of system performance

• Alarm and diagnostics functionality

• Data visualization of operating conditions

Electronic Expansion Valve (EEV)

Ensures precise refrigerant flow control, enabling better adaptation to varying load conditions and improving overall efficiency.

Performance Benefits

Maximum Cooling Efficiency

By reducing the distance between heat source and cooling unit, the system achieves significantly higher efficiency compared to traditional CRAC systems.

Energy Savings up to 30–50%

Dynamic capacity control and optimized airflow reduce energy consumption compared to conventional air-cooled systems.

Elimination of Hot Spots

Direct cooling within the row prevents localized overheating and improves equipment reliability.

Scalable & Modular Design

Units can be deployed modularly across rows, enabling scalable cooling for growing data center loads.

Improved Airflow Management

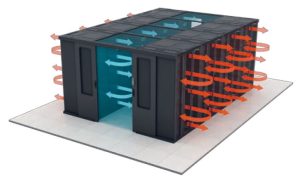

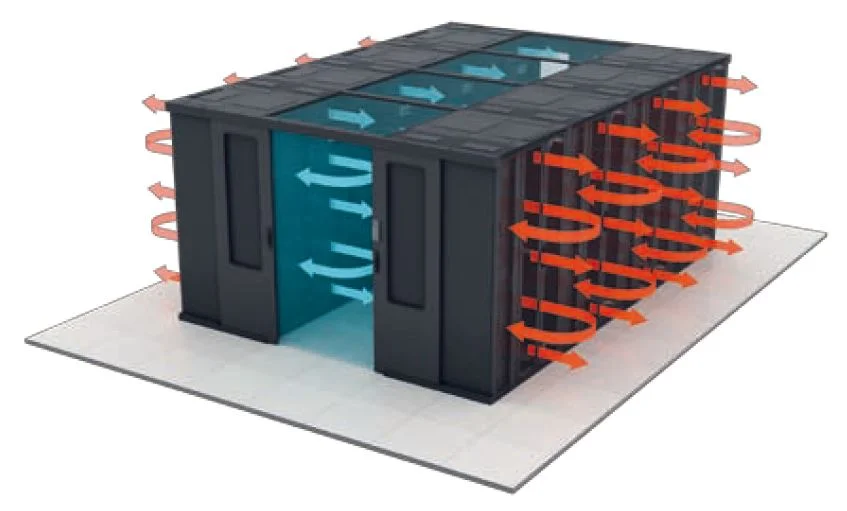

Supports hot aisle / cold aisle containment strategies, enhancing overall cooling performance.

Technical Highlights (Suggested Web Table)

Product Type: In-Row Precision Air Conditioning (PAC)
Cooling Capacity Range: 13 kW – 26 kW
Cooling Method: DX Air-Cooled / Optional Hybrid
Compressor Type: Inverter Scroll Compressor
Refrigerant: R410A
Fan Type: EC Fan (Stepless Speed Control)
Airflow Direction: Front / Side Discharge
Power Supply: 380V / 3Ph / 50Hz
Control Interface: 7” Touchscreen Display
Capacity Modulation: 20% – 100%
Operation Mode: 24/7 Continuous Duty

Engineering Advantages

Close Heat Source Cooling

Cooling directly at the rack level increases return air temperature and improves system efficiency.

Adaptive Load Matching

Cooling output automatically adjusts based on real-time server load conditions, optimizing performance.

High Energy Efficiency Ratio (EER)

Advanced design ensures high efficiency and reduced operational costs in high-density environments.

Integration with Modular Data Centers

Seamlessly integrates with:

• Micro data centers

• Modular containerized data centers

• Row-based rack systems

Typical Applications

The Emecron In-Row Precision Cooling System is ideal for:

• High-density data centers

• Hyperscale & enterprise IT facilities

• Edge data centers

• Modular & containerized data centers

• Telecom switching rooms

• Cloud and colocation environments

In-row cooling is particularly effective where traditional room cooling cannot handle concentrated heat loads efficiently.

Why Choose Emecron In-Row Cooling

Engineering Trust. Powering Tomorrow.

Emecron’s in-row precision cooling solutions deliver:

• High-efficiency close-coupled cooling

• Intelligent load-based operation

• Scalable modular deployment

• Reliable 24/7 performance

Designed for the future of data centers, Emecron ensures maximum cooling efficiency, reduced energy consumption, and enhanced equipment protection.
